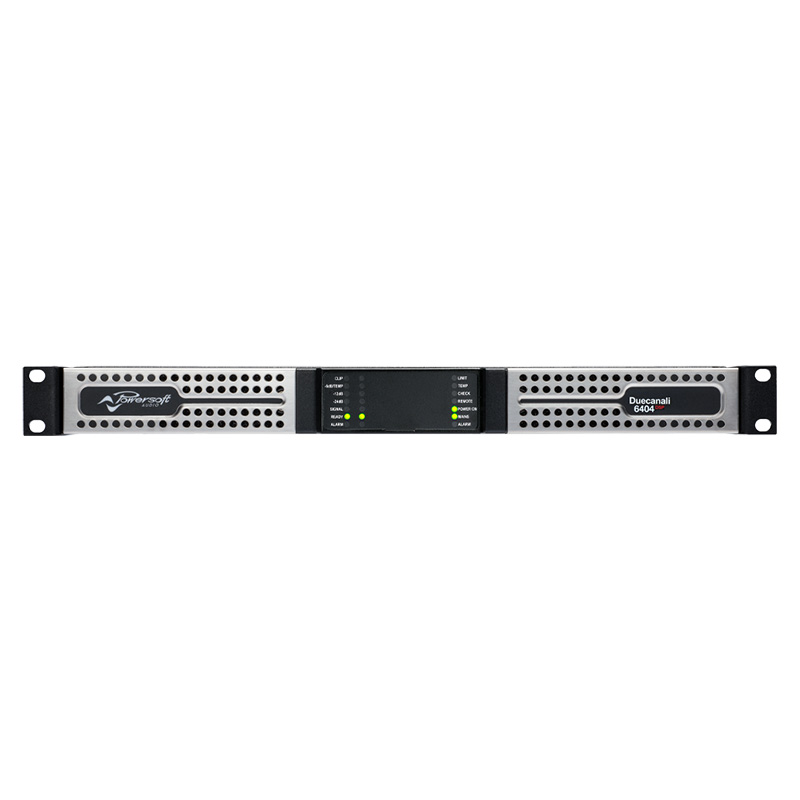

Cục Đẩy Công Suất Powersoft Duecanali 6404 DSP

108.120.000₫

Chia sẻ:

Number of input channels	Analog : 2 / Phoenix MC 1,5/6-ST-3,81
Number of output channels	2 Hi-Z or Lo-Z (bridgeable per ch. pair) / Phoenix PC 5/4-STF1-7,62
Ouput power	1800W (8Ω) / 3200W (4Ω) / 46000W (2Ω) 9200W (4Ω Bridged) / 6400W (8Ω Bridged) 4000W (100V) / 3200W (70V)
Frequency Response	20 Hz - 20 kHz ±1.0 dB, 1 W @ 8 Ω
Input impedance	20 kΩ balanced
Output impedance at 100 Hz	26 mΩ
AD converters	24 Bit Tandem™ @ 48 kHz typical 125 dB-A Dynamic Range - 0.005 % THD+N
DA converters	24 Bit Tandem™ @ 48 kHz typical 117 dB-A Dynamic Range - 0.003 % THD+N
Sample rate converter	24 Bit @ 44.1 kHz to 96 kHz typical 140 dB Dynamic Range - 0.0001 % THD+N
Internal precision	32 bit floating point
Latency	2.5 ms fixed latency architecture
Memory/Presets	49 amplifier snapshots, virtually unlimited speaker presets
Delay	2 s (input) + 100 ms (output) for time alignment
Equalizer	Raised-cosine, custom FIR, parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass
Crossover	linear phase (FIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR)
Limiters	TruePower™, RMS voltage, RMS current, Peak limiter
Damping control	Active DampingControl™ and LiveImpedance™ measurement
Nominal voltage (±10%)	100-240 VAC @ 50-60Hz
Operating Voltage	90-264 VAC
AC Mains connector	IEC C20 inlet (20 A max) region-specific power cord provided
Standards compliance	auto-sensing Fast Ethernet (IEEE 802.3u, 100 Mbit/s)
Remote interface	ArmoníaPlus™
Dimensions	483 x 44.5 x 358 mm
Weight	7 Kg
